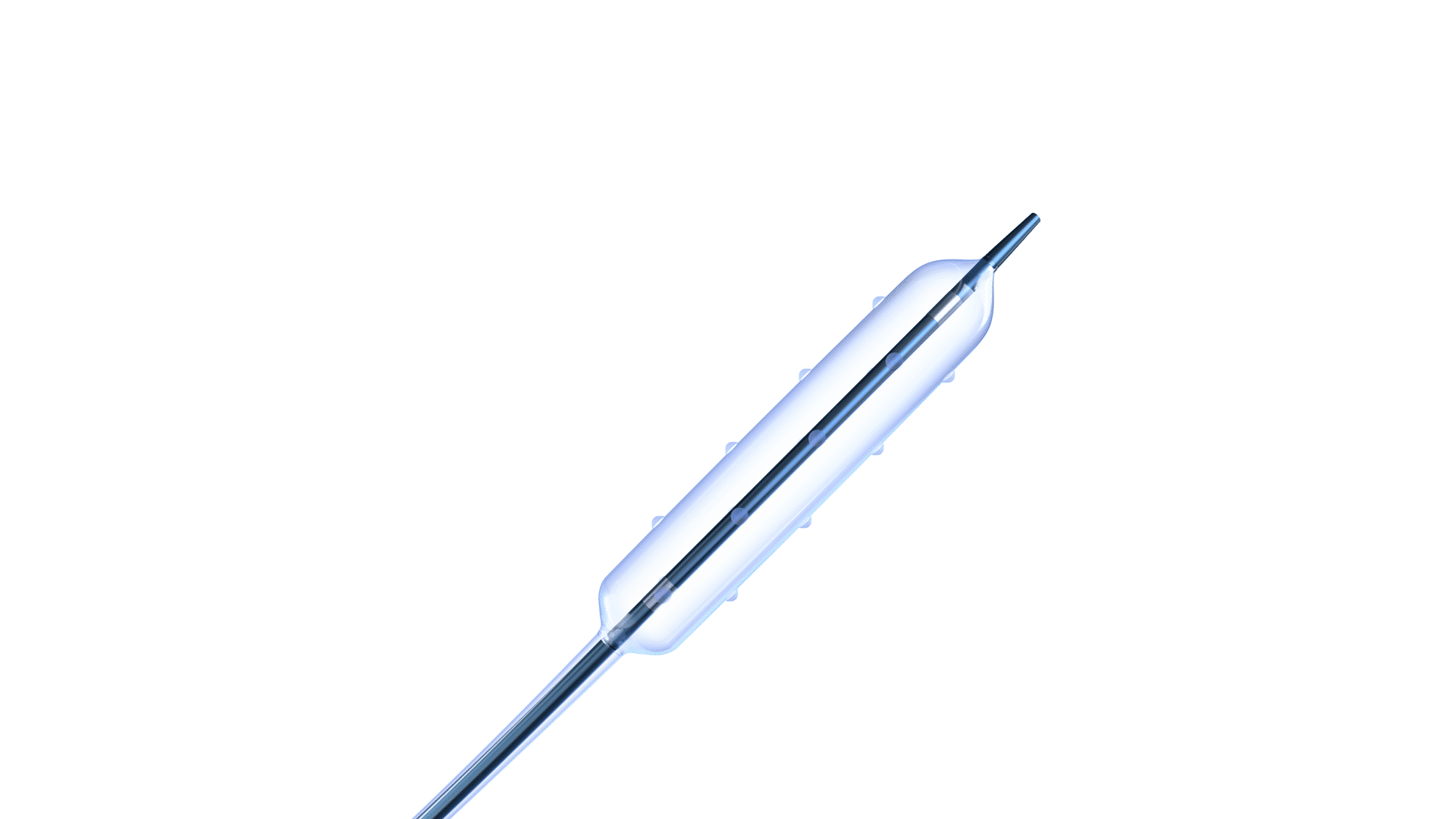

Specialty Balloon Grip

The original metal-free vessel-preparation balloon

Product Highlights

0.019"
Entry Profile

5 F
Guiding Catheter Compatibility

0.014"
Maximum Guidewire Size

Acrostak was the first company to enter the market with an only polymer made PTCA balloon dedicated to slippery and calcified lesions.

The absence of metallic elements on its surface avoids complications while its flexibility and material strength make distal lesions accessible again.

Product Features

_01

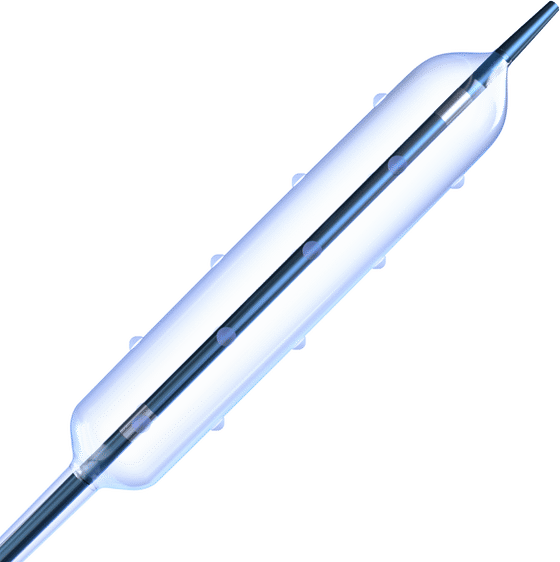

High RBP up to 21 Atm

Proven history of puncture resistance

_02

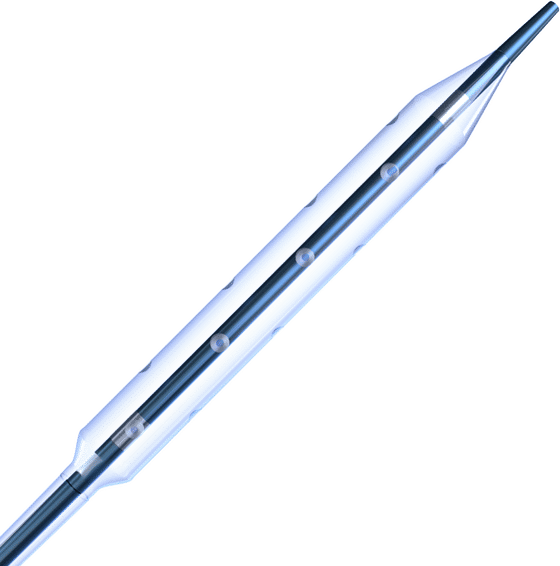

No metal, just polymer

High trackability to reach the most distal lesions

_03

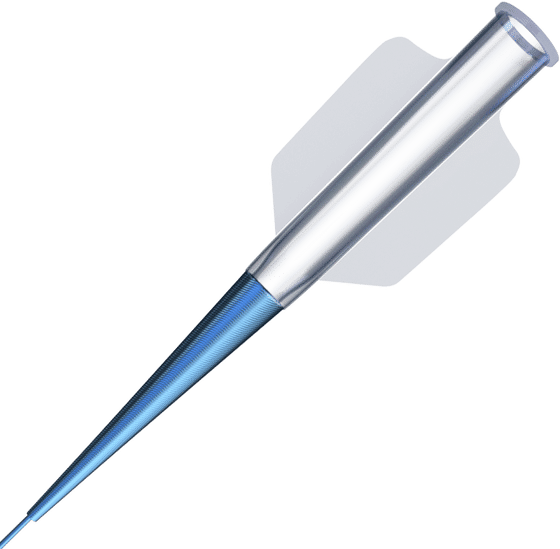

Rapid exchange

High pushability given by the shaft design

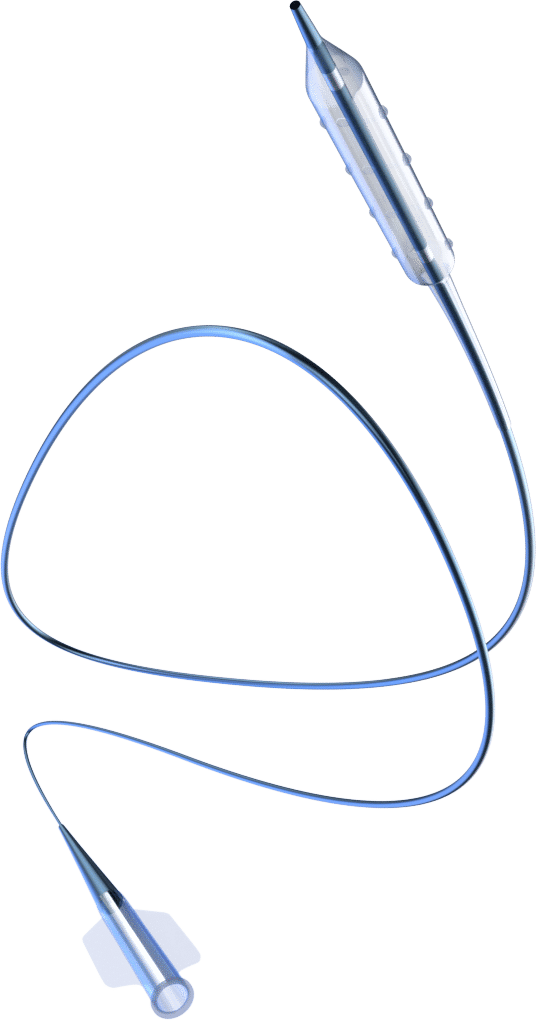

Technical Drawing

Technical Specifications

Reference	Balloon Diameter	Balloon Length	Marker	Entry Profile	Max. Guidewire	Usable Length	Min. Guide Catheter / ID

250080340	2.5 mm	8 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
250120340	2.5 mm	12 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
250160340	2.5 mm	16 mm	2	0.019"	0.014"	138 cm	5F / 0.056"

300080340	3.0 mm	8 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
300120340	3.0 mm	12 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
300160340	3.0 mm	16 mm	2	0.019"	0.014"	138 cm	5F / 0.056"

350080340	3.5 mm	8 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
350120340	3.5 mm	12 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
350160340	3.5 mm	16 mm	2	0.019"	0.014"	138 cm	5F / 0.056"

400080340	4.0 mm	8 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
400120340	4.0 mm	12 mm	2	0.019"	0.014"	138 cm	5F / 0.056"
400160340	4.0 mm	16 mm	2	0.019"	0.014"	138 cm	5F / 0.056"

Control your Size

Atm*
Nominal Pressure (NP)
Atm**
Rated Burst Pressure (RBP)
Balloon ⌀	Atm 6	Atm 8	Atm 10	Atm* 11	Atm 12	Atm 14	Atm 16	Atm** 18	Atm** 19	Atm** 20	Atm** 21	Atm 22

2.5 mm	2.30 mm	2.37 mm	2.45 mm	2.50 mm	2.54 mm	2.62 mm	2.68 mm	2.73 mm	2.75 mm	2.77 mm	2.79 mm	2.81 mm
3.0 mm	2.76 mm	2.84 mm	2.94 mm	3.00 mm	3.05 mm	3.14 mm	3.22 mm	3.27 mm	3.30 mm	3.33 mm	3.36 mm	3.38 mm
3.5 mm	3.19 mm	3.31 mm	3.44 mm	3.50 mm	3.56 mm	3.67 mm	3.76 mm	3.83 mm	3.87 mm	3.90 mm	3.93 mm	n/a
4.0 mm	3.65 mm	3.78 mm	3.91 mm	4.00 mm	4.07 mm	4.19 mm	4.29 mm	4.37 mm	4.41 mm	4.45 mm	n/a	n/a

Downloads

Instructions For Use
