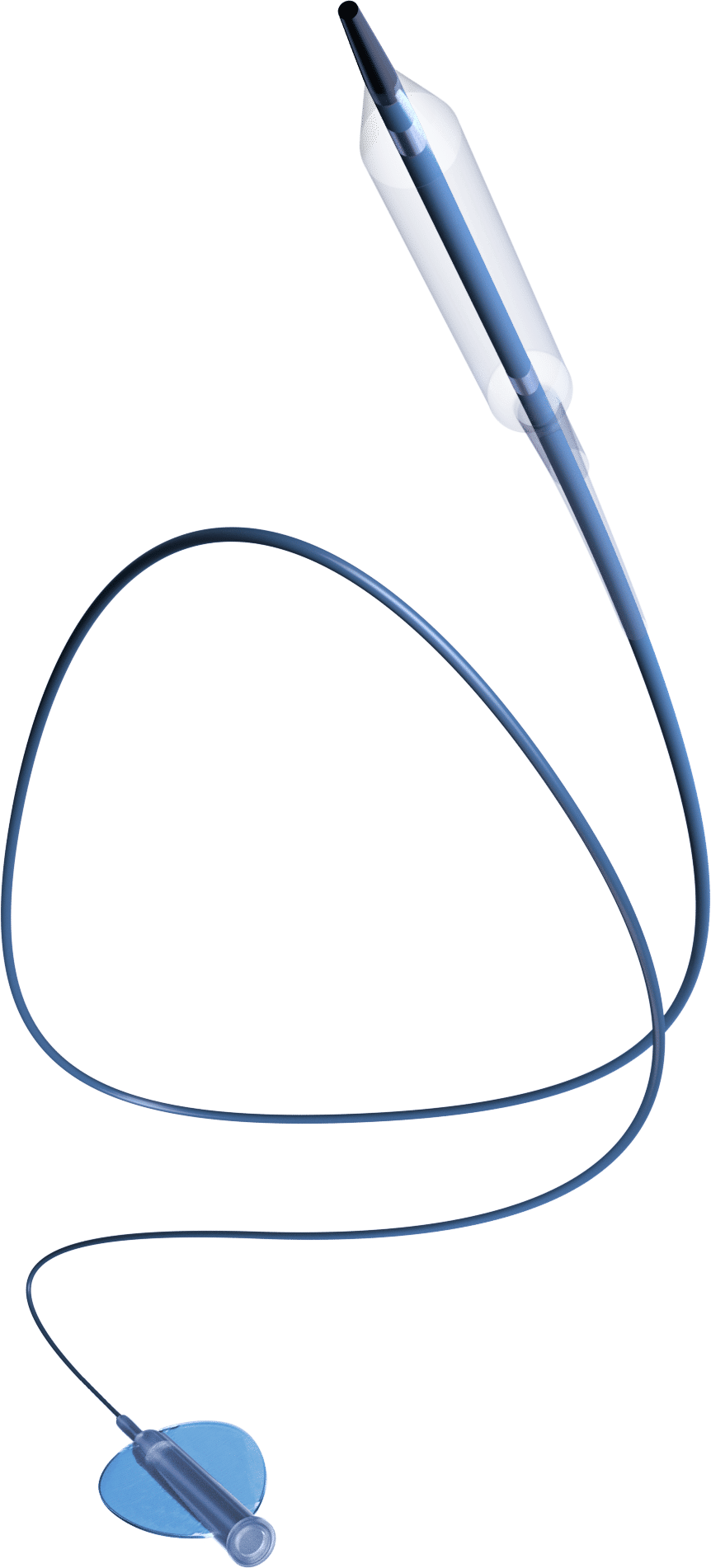

Non-compliant Balloon Across NC

Reliable Non-Compliance for precise post dilation

Product Highlights

0.016"
Entry Profile

5 F
Guiding Catheter Compatibility

0.014"
Maximum Guidewire Size

High Rated Burst Pressure up to 21 atm, combined with superb catheter performances, for a wide range of indications.

No longitudinal growth for controlled expansion, no balloon deformations for precise stent apposition and no dog boning effect ensuring exact and protected sizing.

Product Features

_01
Tapered tip

Together with the seamless tip-to-shoulder design allows good trackability and crossability

_02
Double mid marker

Good visibility for precise dilation

_03
Rapid exchange

High pushability given by the shaft design

Technical Drawing

Technical Specifications

Reference	Balloon Diameter	Balloon Length	Marker	Tip Length	Entry Profile	Max. Guidewire	Usable Length	Min. Guide Catheter / ID

ACRO2005	2.00 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2010	2.00 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2015	2.00 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2020	2.00 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

ACRO2505	2.50 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2510	2.50 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2515	2.50 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2520	2.50 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

ACRO2705	2.75 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2710	2.75 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2715	2.75 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO2720	2.75 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

ACRO3005	3.00 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3010	3.00 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3015	3.00 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3020	3.00 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

ACRO3205	3.25 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3210	3.25 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3215	3.25 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3220	3.25 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

ACRO3505	3.50 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3510	3.50 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3515	3.50 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO3520	3.50 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

ACRO4005	4.00 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO4010	4.00 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO4015	4.00 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO4020	4.00 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

ACRO4505	4.50 mm	5 mm	1	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO4510	4.50 mm	10 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO4515	4.50 mm	15 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"
ACRO4520	4.50 mm	20 mm	2	3.5 mm	0.016"	0.014"	154 cm	5 F / 0.056"

Control your Size

The balloon material is a semi-compliant polyamide,
providing a ‘Work Your Size’.

Atm*
Nominal Pressure (NP)
Atm**
Rated Burst Pressure (RBP)
Balloon ⌀	Atm 4	Atm 5	Atm 6	Atm 7	Atm 8	Atm 9	Atm 10	Atm 11	Atm* 12	Atm 13	Atm 14	Atm 15	Atm 16	Atm 17	Atm 18	Atm** 19	Atm 20	Atm** 21

2.00 mm	1.74 mm	1.78 mm	1.82 mm	1.85 mm	1.90 mm	1.93 mm	1.96 mm	1.98 mm	2.00 mm	2.03 mm	2.06 mm	2.09 mm	2.11 mm	2.14 mm	2.16 mm	2.18 mm	2.21 mm	2.24 mm
2.50 mm	2.27 mm	2.31 mm	2.35 mm	2.38 mm	2.41 mm	2.44 mm	2.46 mm	2.48 mm	2.50 mm	2.52 mm	2.54 mm	2.56 mm	2.58 mm	2.60 mm	2.62 mm	2.64 mm	2.66 mm	2.69 mm
2.75 mm	2.46 mm	2.48 mm	2.51 mm	2.55 mm	2.60 mm	2.65 mm	2.68 mm	2.72 mm	2.75 mm	2.77 mm	2.79 mm	2.82 mm	2.84 mm	2.86 mm	2.89 mm	2.91 mm	2.93 mm	2.96 mm
3.00 mm	2.75 mm	2.80 mm	2.84 mm	2.87 mm	2.90 mm	2.93 mm	2.96 mm	2.98 mm	3.00 mm	3.02 mm	3.04 mm	3.06 mm	3.08 mm	3.11 mm	3.13 mm	3.15 mm	3.18 mm	3.20 mm
3.25 mm	2.83 mm	2.86 mm	2.91 mm	2.96 mm	3.01 mm	3.08 mm	3.13 mm	3.18 mm	3.25 mm	3.27 mm	3.30 mm	3.33 mm	3.37 mm	3.41 mm	3.44 mm	3.48 mm	n/a	n/a
3.50 mm	3.13 mm	3.16 mm	3.23 mm	3.30 mm	3.35 mm	3.40 mm	3.44 mm	3.47 mm	3.50 mm	3.52 mm	3.55 mm	3.58 mm	3.60 mm	3.63 mm	3.66 mm	3.68 mm	n/a	n/a
4.00 mm	3.57 mm	3.65 mm	3.73 mm	3.80 mm	3.86 mm	3.91 mm	3.95 mm	3.98 mm	4.00 mm	4.03 mm	4.06 mm	4.08 mm	4.11 mm	4.14 mm	4.17 mm	4.20 mm	n/a	n/a
4.50 mm	4.07 mm	4.15 mm	4.23 mm	4.30 mm	4.36 mm	4.41 mm	4.45 mm	4.48 mm	4.50 mm	4.53 mm	4.56 mm	4.58 mm	4.61 mm	4.64 mm	4.67 mm	4.70 mm	n/a	n/a
